AIoT 芯片

WISEN-1 2.4GHz, 1T1R, Wi-Fi 6 + BLE 5

内置应用 MCU 的低功耗 Wi-Fi & BLE 芯片

WISEN-1 是一款高度集成的 1T1R 2.4GHz Wi-Fi 6 + BLE 5.1 芯片和内置应用 MCU 的 SoC 解决方案,适用于低成本和低功耗的物联网应用。

WISEN-1 卓越的通信距离和低功耗使其成为智能家居(比如远程监控和传感)、电池类 IPC、可视门铃、联网家电等低功耗应用的理想解决方案。

应用处理器子系统包含高性能的 32 位 RISC-V MCU,工作频率高达 160MHz,包括嵌入式 SRAM/ROM。Wi-Fi 子系统包含 2.4GHz 射频和 802.11b/g/n/ax 调制解调器及 MAC,以实现低延时、长距离和低功耗。蓝牙 LE  子系统包含蓝牙 5.1 射频、调制解调器和链路控制器,可以实现蓝牙 Mesh 功能。

WISEN-1 通过极少的外围器件实现超小型解决方案,从而降低模组和系统级的成本。该 SoC 芯片方案支持常用的外围接口和安全功能,可靠的连接和电源管理技术可实现极低的工作和睡眠功耗,从而延长电池供电类设备的使用时间。

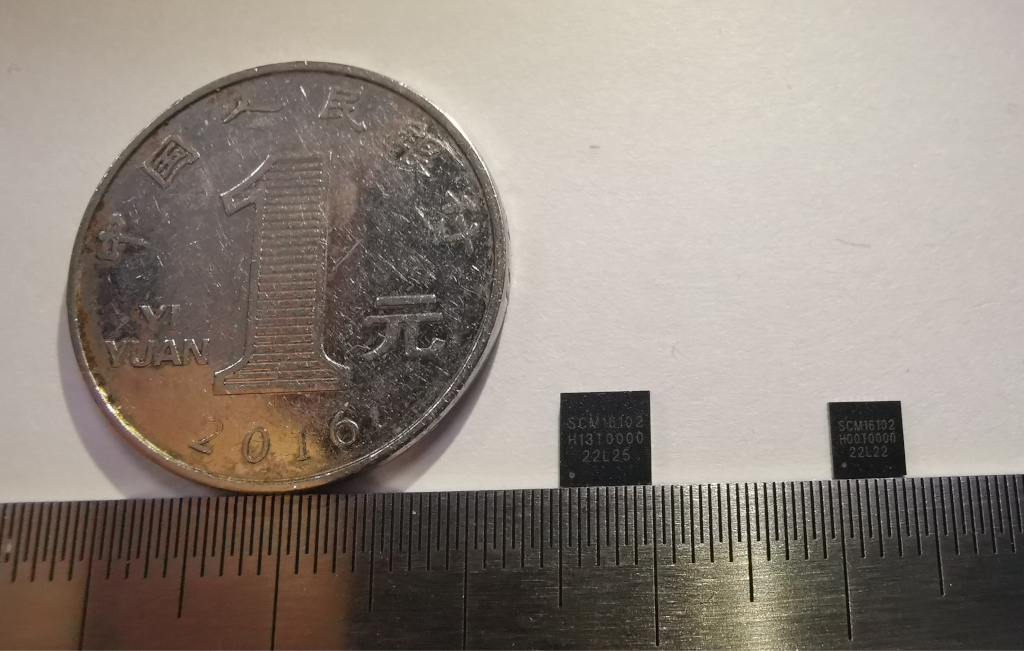

AIoT 芯片裸片照片
AIoT 芯片裸片照片

功能描述

WLAN

  • IEEE 802.11 b/g/n/ax compliant
  • 11b/g/n 20/40MHz bandwidth and 11ax 20MHz in 2.4GHz band
  • 1T1R mode with data rate up to MCS 7
  • Support MU DL/UL OFDMA
  • Support STBC
  • Support TWT
  • Security support for WFA WPA/WPA2/WPA3
  • Support IEEE 802.11e and Wi-Fi Multimedia (WMM)
  • Supports 802.11w protected managed frame
  • TX/RX A-MPDU, RX A-MSDU
  • Fragmentation and defragmentation
  • Greenfield, mixed mode, legacy modes support
  • Support Soft-AP mode and concurrent mode
  • Integrated LNA, PA and T/R switch
  • Low power consumption

处理器及内存

  • 32-bit RISC-V single-core application processor with floating-point support
  • 384 KB ROM
  • 352 KB SRAM
  • embedded 4MB NOR Flash
  • SPI (single, dual & quad) for external FLASH

Bluetooth Low Energy

  • Bluetooth LE 5.1 fully compliant
  • Data rate 1Mbps, 2Mbps, Long range 125kbps and 500kbps
  • Auto acknowledgement, retransmission and flow control
  • Support full-function Bluetooth LE AoA and AoD features
  • Advertising extensions
  • Long data and Adv packets
  • Support for stable modulation index
  • Channel selection algorithm #2
  • Multiple advertisement sets
  • Both central and peripheral modes
  • Integrated Balun and PA

安全

  • Secure boot
  • Flash encryption
  • Cryptographic hardware acceleration

接口

  • Programmable GPIO, 12-bit SAR ADC
  • 2 x SPI master, 3 x UART, 2 x I2C
  • 6 x PWM controllers, 1 x I2S
  • SDIO 2.0 device

供电及封装

  • Support 2.7V~3.6V voltage input
  • 40MHz crystal clock
  • QFN 40-pin, 5mm x 5mm



WISEN-1 系统框图
WISEN-1 系统框图

现在已可提供芯片样品及评估套件。要获取更多有关 Senscomm 产品信息与详情,请联系你所在地销售代表,或直接与 Senscomm 联系。
